PAGANI ZONDA F Roadster

Technical Specifications

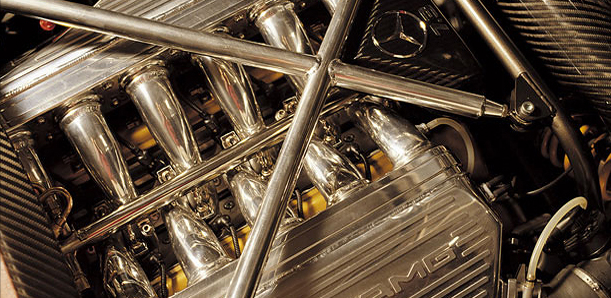

• Engine: Mercedes-Benz AMG 12 cylinder V 60°,
   48 valves; displacement 7291 cc.
• Max. Power:(kW) hp/rpm: (478) 650/6200
• Max. Torque: Nm/rpm 780/4000.
• Weight-to-Power ratio: 1,89 kg/hp.
• Intake manifold: aluminium hydroformed
   alloy/avional MHG-System.
• Exhaust system:hydroformed steel and ceramic
   coated, inconel manifold, titanium muffler.
• Transmission: longitudinal mid engine; rear wheel
   drivewith self-locking differential.
• Clutch: twin plate clutch.
• Gearbox: mechanical 6 speed (+ reverse).
• Brakes: 4 ventilated Brembo disks, hydraulic
   power brake.
• Carbon-ceramic brakes:front 380x34 mm 6 piston
   caliper;rear 380x34 mm 4 piston caliper.
• Steering: TRW rack and pinion power assisted.
• Wheels: Forged aluminium/magnesium alloy
   APP wheels;19” front, 20” rear.
• Tyres: Michelin Pilot Sport 2:front 255/35/19
   rear 335/30/20.
• Suspensions: 4 independent wheels with
   double A-arm;pull rod helical springs and
   Öhlins adjustable shock absorbers; anti-roll bar;
   aluminium/magnesium alloy suspension arms.
• Structure:central carbon fiber chassis;front
   and rear Cr Mo space frames;carbon fiber
   “MD System” bodywork panels.
• Dimensions:length 4435 mm; width 2055 mm;
   height 1141 mm; wheelbase 2730 mm;dry
   weight 1230 kg.
• Weight distribution: 46% front; 54% rear.
• Downforce: ~600 kg at 300km/h;
   downforce distribution: ~270 kg front; ~330 kg rear.
• Vehicle-Diagnosis:TMD remote diagnosis.
   Texa Mobile Diagnostic.
• Safety:ABS/Traction Control Bosch; central
   carbon fibre safetycell with Cr Mo steel and carbon
   fibre roll bar;front and rear impact energy
   absorbing structure incarbon fibre and Cr Mo.
• Performance:acceleration 0-100 km/h 3,6 sec.;
   0-200 km/h 9,8 sec.;Lateral g’s: 1,4 g;
   Braking 200-0 km/h: 4,4 sec.;
   Top speed: > 345km/h.

Pagani Roadster F is equipped with a
Mercedes-AMG engine, engineered and built
with craftsmanship dedicating itself to the highest
technological standards.
