PAGANI ZONDA R

Technical Specifications

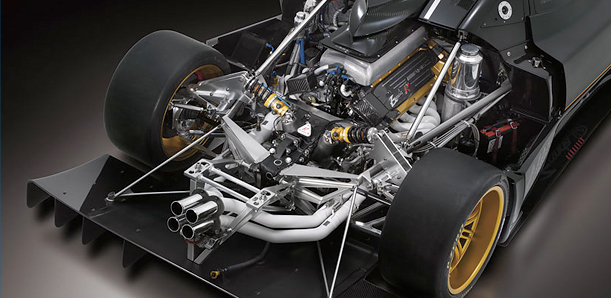

• Engine: Mercedes-Benz AMG - M120 -
12 cylinder V 60°, 48 valves; displacement
5987 ccm, dry sump.
• Max. Power:(kW) hp/rpm: (551) 750 / 7.500.
• Max. Torque: Nm/rpm: 710/5.700.
• Stroke: 80,20 mm.
• Bore: 89,00 mm.
• Traction control: 12 Stage - Bosch Motorsport
traction control system.
• Intake: Single throttle bodies, mechanically
operated.
• Exhaust system: Hydroformed Inconel,
ceramic coated.
• Transmission: Longitudinal mid engine;
rear wheel drive with self-locking differential.
• Gearbox: XTRAC 672 bespoke magnesium
casing gearbox, 6 speed sequential dog
gearchange with Automac Engineering
AMT system.
• Carbon-ceramic brakes: 4 ventilated Brembo
disks, hydraulic power brake. 12 Stage - Bosch
Motorsport Race ABS.
• Discs: Front 380x34 mm 6 piston caliper; Rear
380x34 mm 4 piston caliper.
• Wheels: Forged alloy APP wheels; 19” front,
20” rear.
• Tyres: Pirelli P Zero Zonda R: front 255/35/19;
rear 335/30/20.
• Suspensions: 4 independent wheels with double
A-arm; Forged Avional suspension arms; pull rod
helical springs and Öhlins adjustable shock
absorbers.

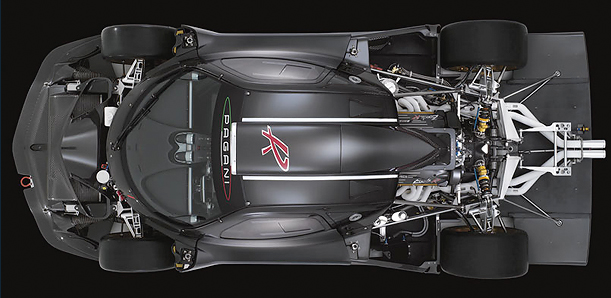

• Structure: Central carbon-Titanium chassis,
Engine is a stressed member; front and rear
Cr Mo space frames; bodywork carbon fiber
MD System.
• Dimensions: Length 4886 mm; Width 2014 mm;
Height 1141 mm; Wheelbase 2785 mm;
Dry weight 1070 kg.
• Safety: Roll cage in Cr Mo steel; carbon fibre
seats HANS compatible; five point harness.
• Performance: 0-100 km/h in 2,7 sec.;
Top speed: > 350 km/h.
• Weight-to-Power ratio: 1,43 kg/hp.
